ADFS Single Sign On (SSO) integration with ClickView

This article will provide guidance on the steps required for SAML Integration with ClickView Online. It is important to understand that the SAML Integration process is a HTTPS only process and customers must ensure that they possess at least a 2048-Bit RSA Certificate from a reputable Certificate Authority.

Currently ClickView supports Single Sign-On (SSO) integration for most SAML2 Protocol based authentication systems including but not limited to Active Directory Federation Services (ADFS), Shibboleth 2.0, WS-Federation, and PingIdentity.

Integration Process with Microsoft ADFS 2.0 / 3.0

Prior to undertaking the below, please ensure your ADFS 'Organisation' information is published with your Federation Metadata.

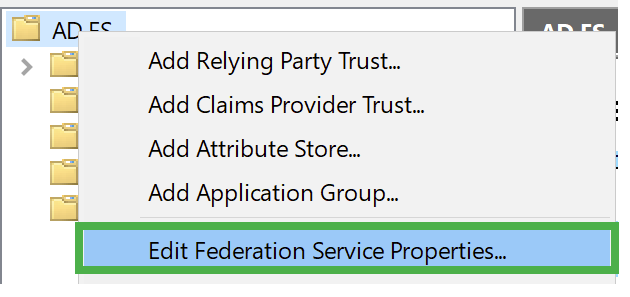

To verify / populate this, right-click on the 'ADFS' folder in the top left hand pane -> 'Edit Federation Service Properties':

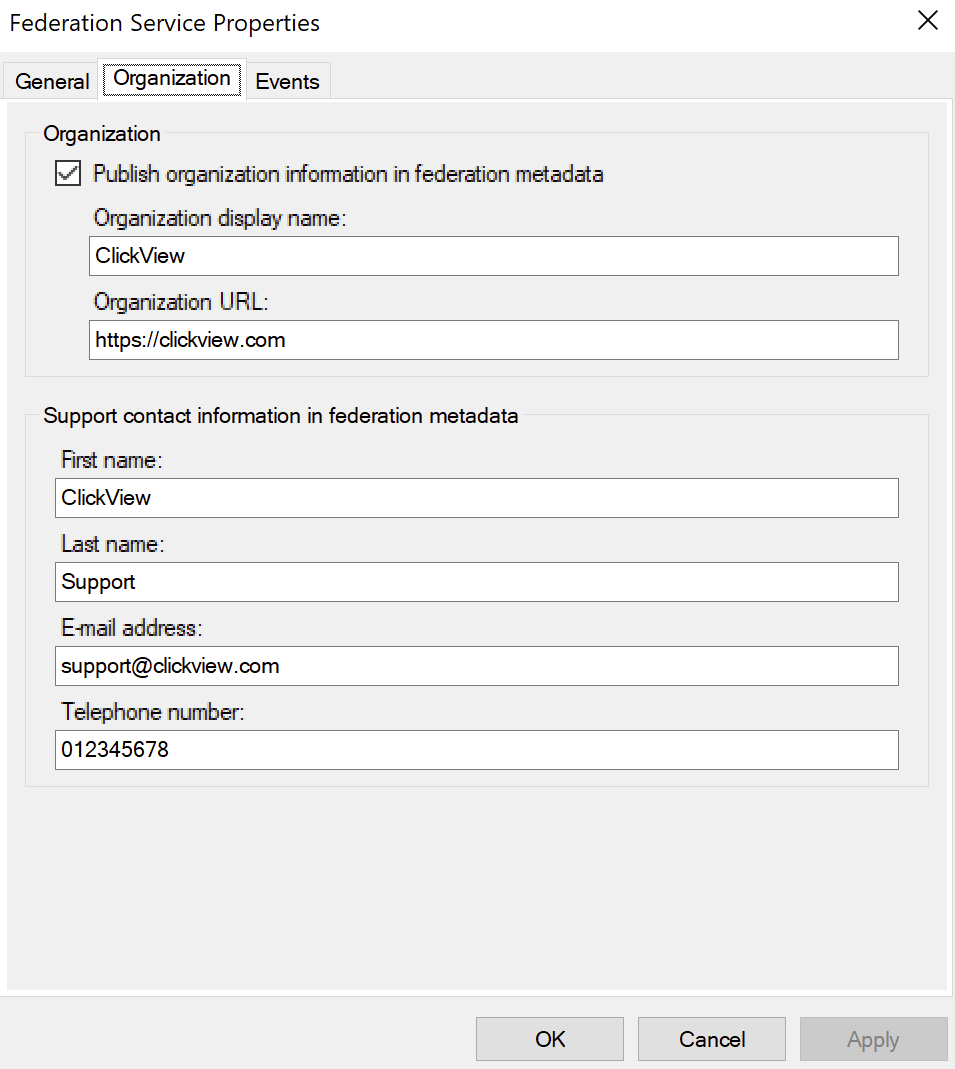

Within this section, click on the 'Organization' tab, this should present you with the following:


Please ensure the 'Publish Organization information in federation metadata' box is ticked, and that all 'Support contact information' boxes are populated with valid data - this is mandatory.

Customers running an Active Directory with functional level of 2003 or higher will be able to take advantage of Microsoft's ADFS System for integrating with ClickView Online. We support ADFS on Windows Server 2008R2 (ADFS2.0) up to Server 2016(ADFS4.0). Below is a brief walk-through on how the ADFS Service can be installed on a Windows 2008 R2 Server:

1.  Open Start

2.  Click Administrative Tools

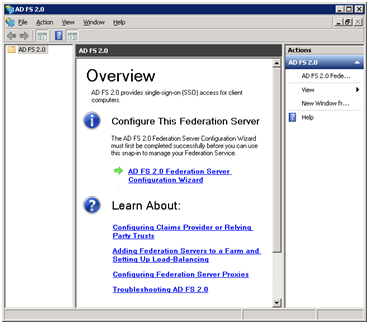

3.  Click AD FS 2.0 Management or AD FS 3.0 Management

4.  Click AD FS Federation Server Configuration Wizard

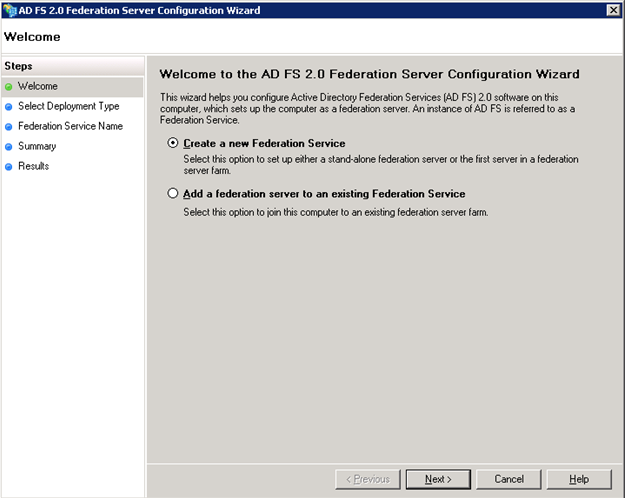

5.  Create a new Federation Service

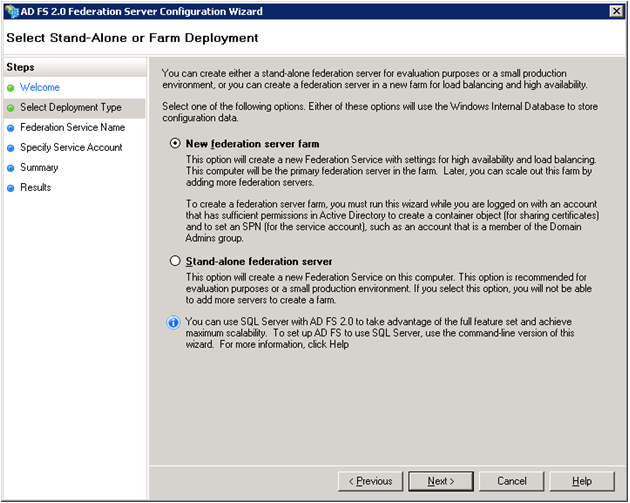

7.  New Federation Server Farm - Choose this option all the time even if you only plan on deploying one server. If stand-alone federation server is chosen, then you will not be able to add a new server to your AD Network.

8.  Click Next

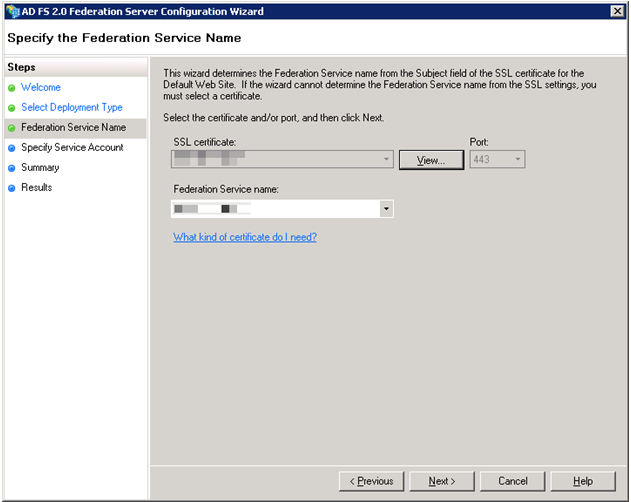

9.  SSL Certificate - This should be pre-populated. If not please assign your SSL Certificate to the Default Website created in IIS

10.  Federation Service Name - This should match the SSL certificate name

11.  Click Next

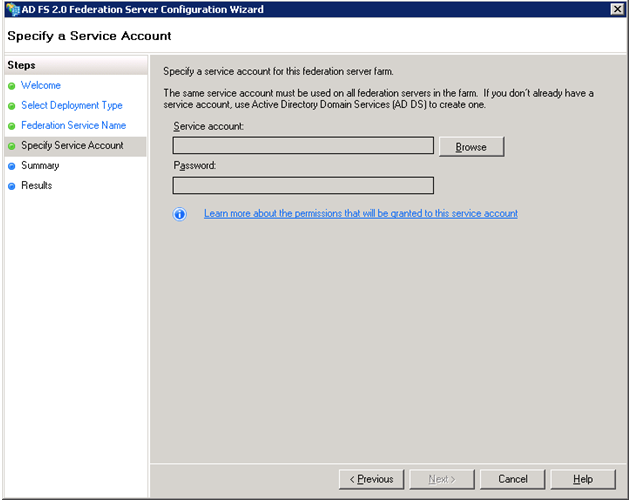

12.  Enter the AD FS service account name and password

13.  Click Next


14.  Click Next.

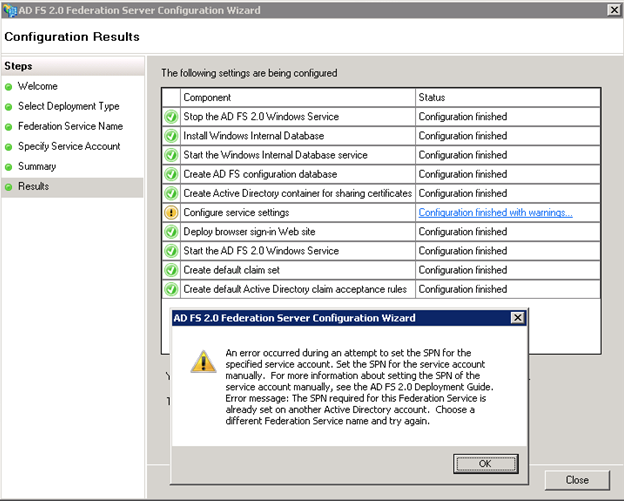

15.  If the name of the federation service is already in use you might be presented with an error: “The SPN required for this Federation Service is already set on another Active Directory account. Choose a different Federation Service name and try again.” You’ll have to use setspn.exe to set the proper SPN.


Configuring Federation Trust with ClickView Online

Now that the ADFS Service has been installed you are ready to setup the Relying Party Trust.

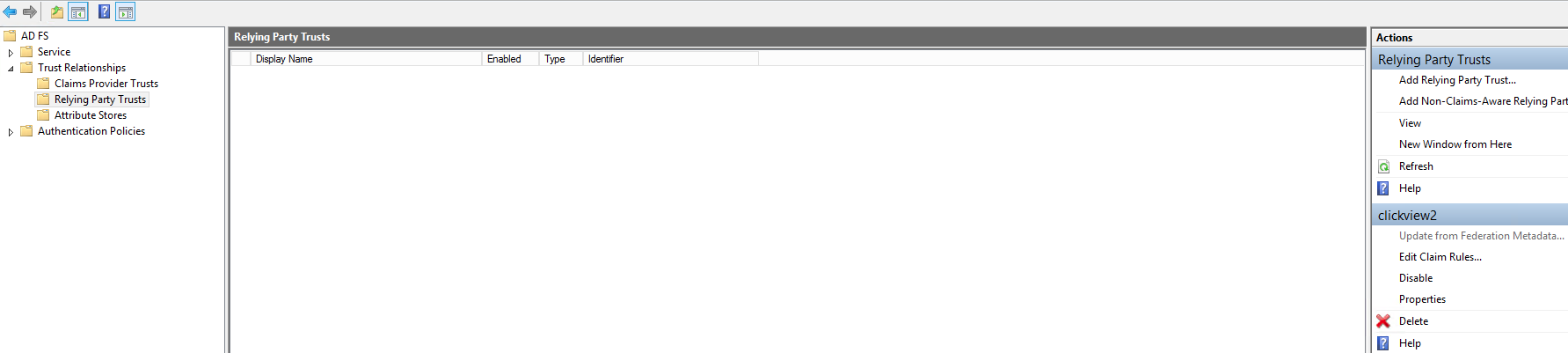

  1. Select Relying Party Trusts

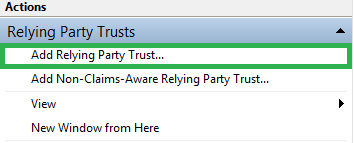

  2. Click Add Relying Party Trust

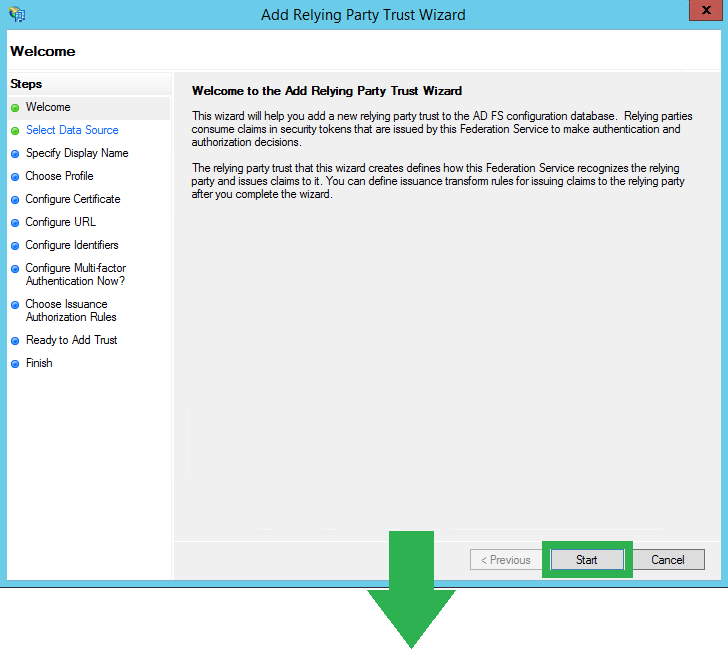

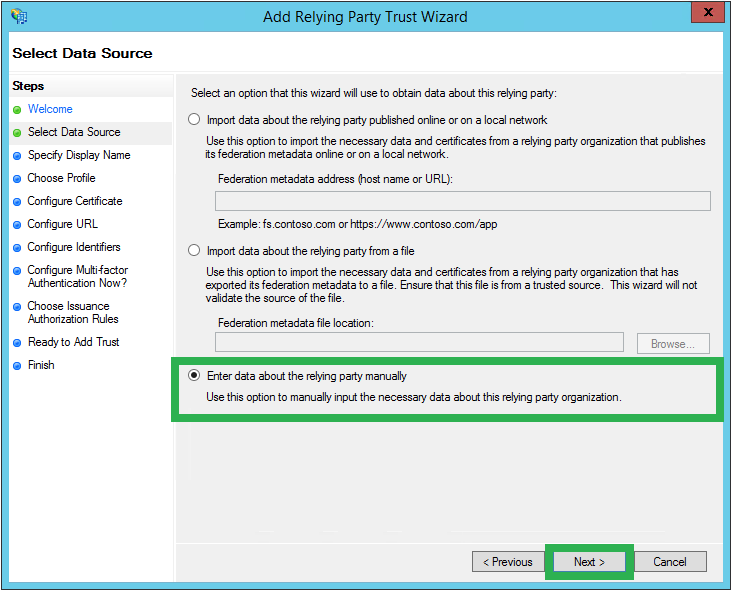

  3. Click Start and then select 'Enter data about the relying party manually':

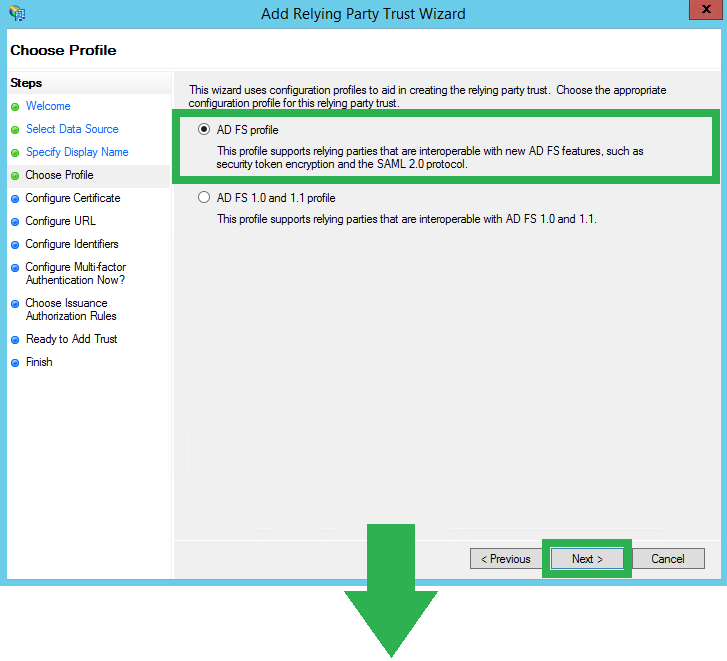

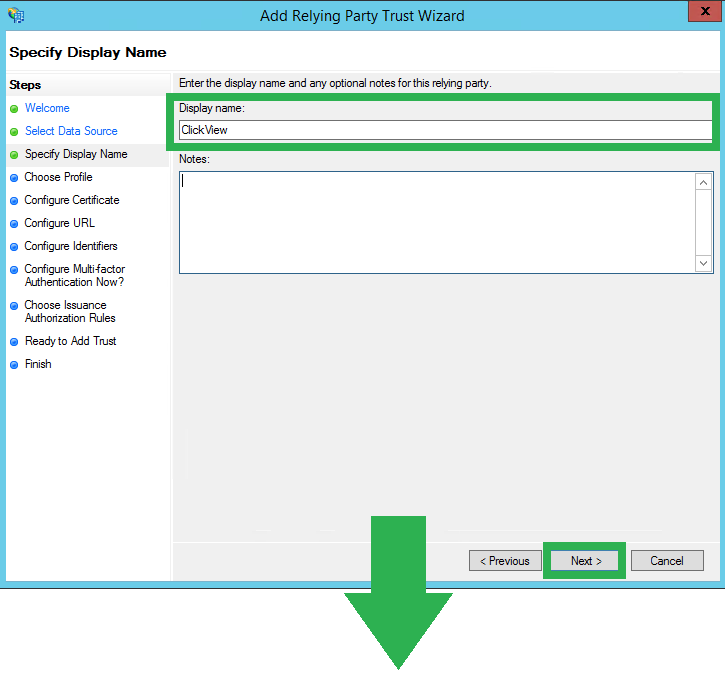

  4. Enter the 'Display name:' as 'ClickView'-> Click 'Next' -> Select the 'AD FS profile' option ->Click 'Next' ->Click 'Next' ->Click 'Next':

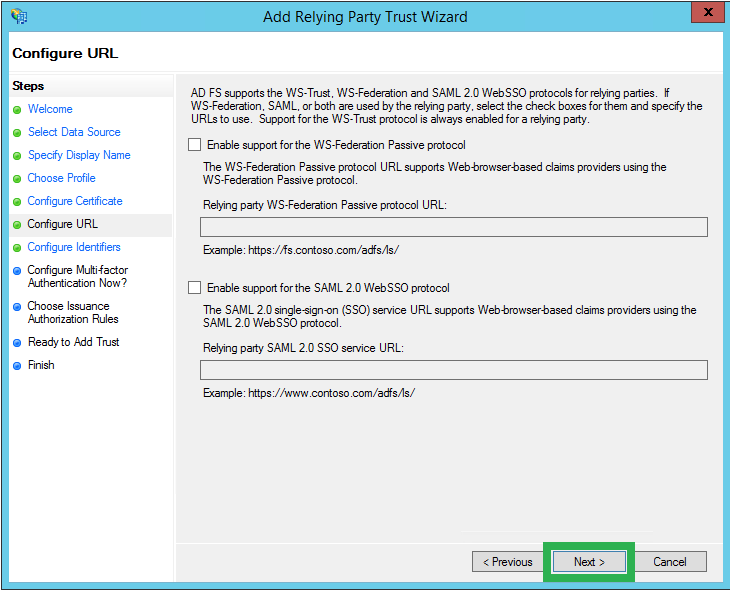

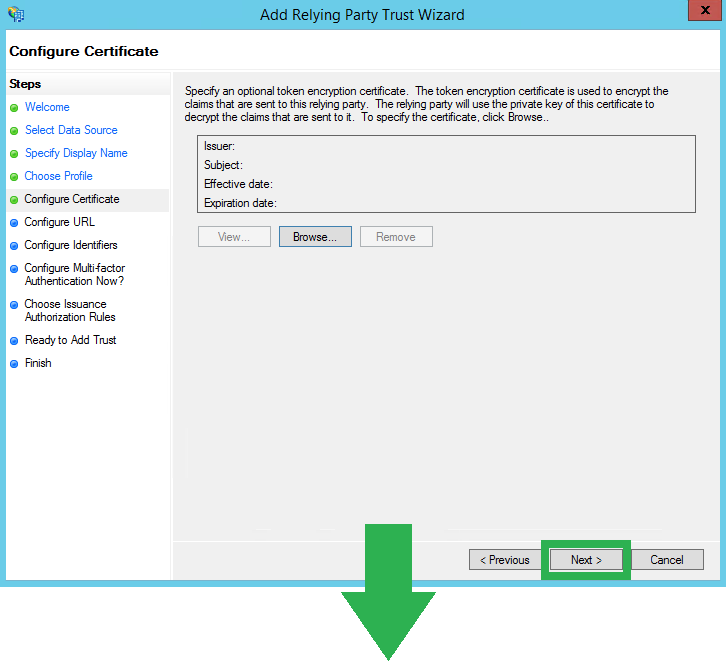

    (NOTE: No checkboxes are required to be ticked on this page, proceed by clicking 'Next':)

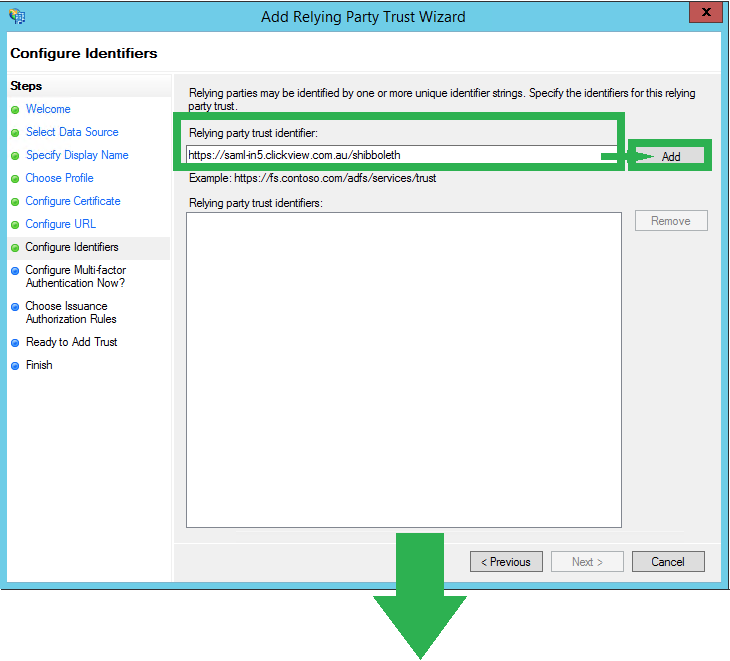

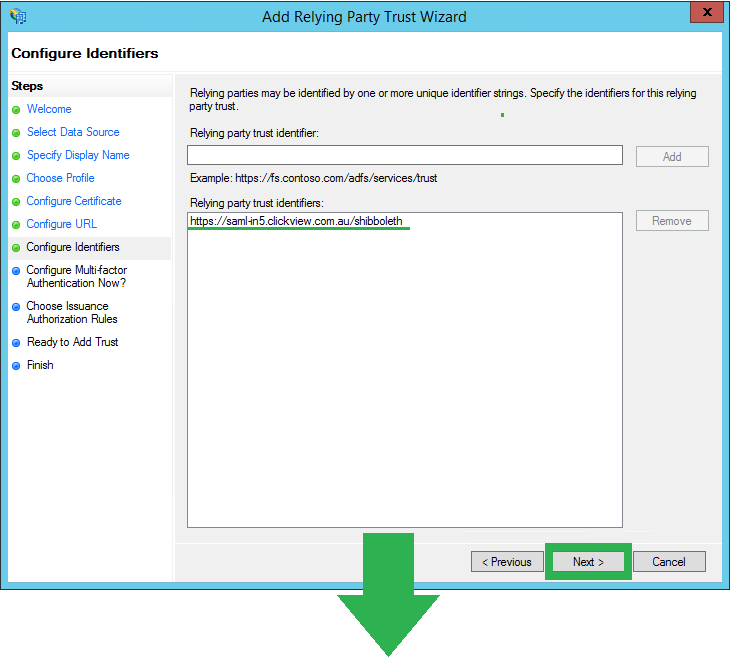

  5. Enter the ClickView entityID URL in the 'Relying party trust identifier' field -> Click 'Add'  according to your region as per below:

    AU: https://saml-in5.clickview.com.au/shibboleth

    UK: https://saml-in3.clickview.co.uk/shibboleth

    NZ: https://shibboleth.clickview.co.nz/shibboleth

    US: https://saml-in1.clickview.us/shibboleth

    (NOTE: Example below shows setup for Australian region)mceclip17.pngOnce EntityID is added, click 'Next':

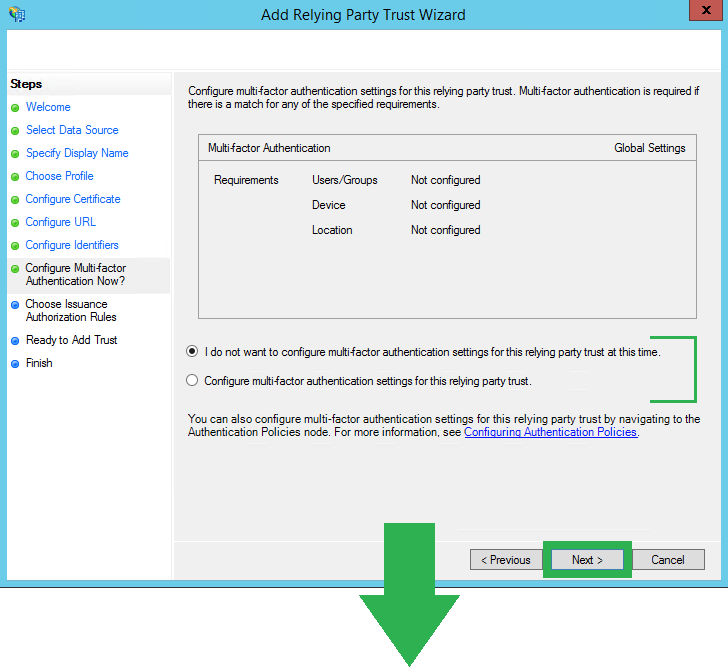

    In this step, a choice of setting up MFA is given, once desired setup is selected; proceed by clicking 'Next':

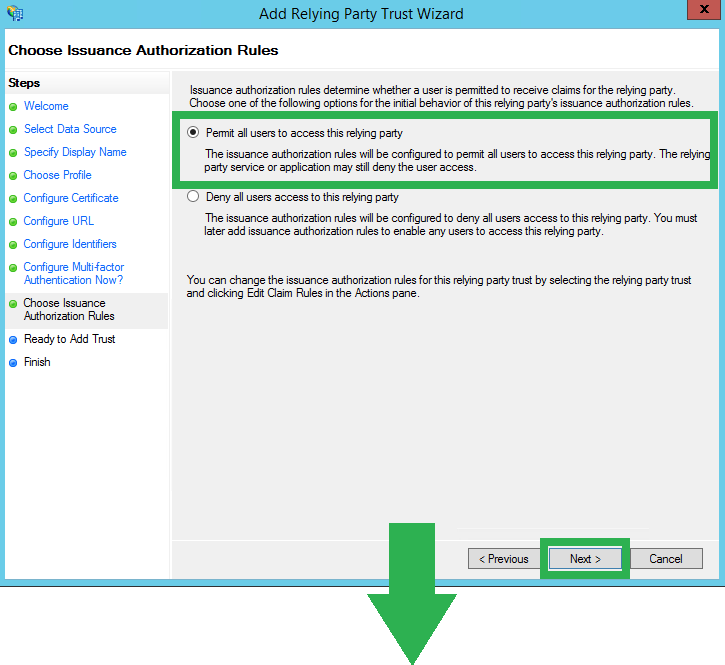

    Select the option of 'Permit all users to access this relying party' and Click 'Next':

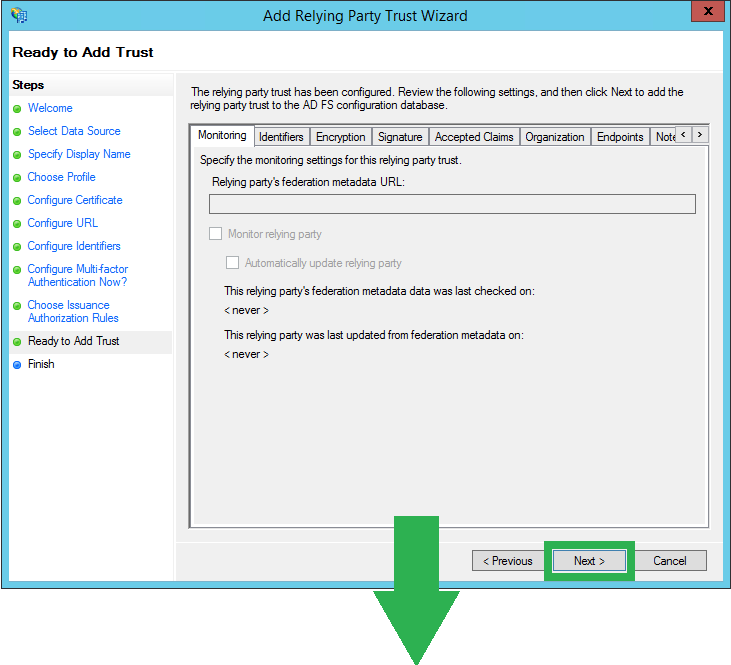

    (NOTE: no fields are required to be populated here, proceed by clicking 'Next':)

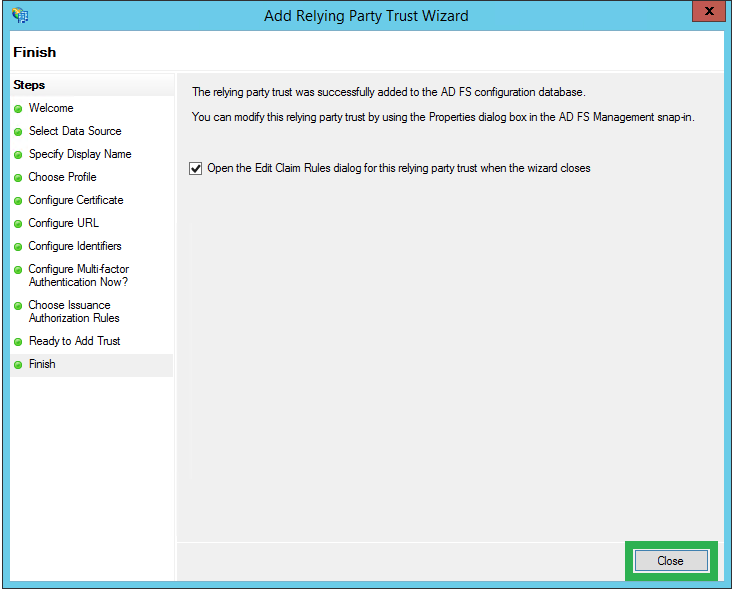

    Upon clicking 'Close', you will be redirected to setup Claim rules as described in the below section:

Creating Claim Rules for Exposure over SAML ADFS 2.0 / 3.0

For successful ADFS Integration with ClickView we require the following attributes exposed:

  • Email Address
  • Given Name
  • Last Name
  • Display Name
  • Member Of (Group Membership)

During the authentication process the user's group membership is enumerated and the respective group membership that is mapped to ClickView Online is chosen.

In accordance with the SAML2 protocol the following rule templates must be used when exposing the above attributes over ADFS.

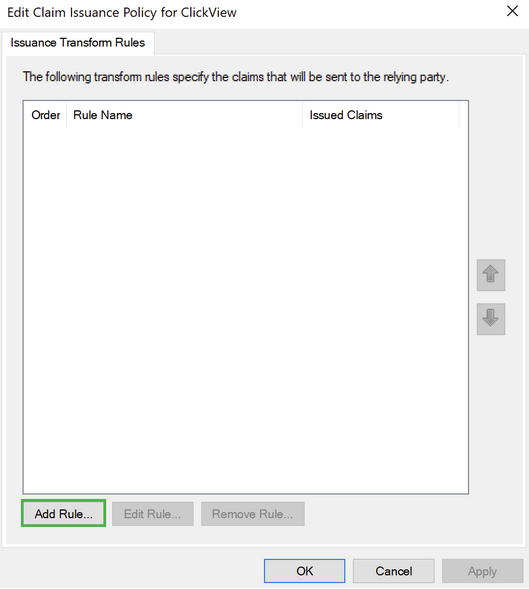

  1. click 'Add Rule':

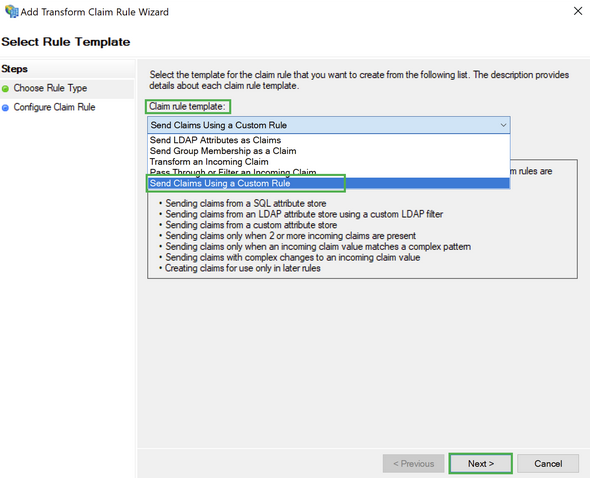

  2.  Select 'Send Claims Using a Custom Rule' from the Claim Rule Template Drop-down and click 'Next':

  3.  For each of the above claim rules explained above enter the corresponding Claim Rule name and the Custom Rule as per below:

Claim Rule Name

Custom Rule

Email Address

c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"]

=> issue(store = "Active Directory", types = ("urn:oid:0.9.2342.19200300.100.1.3"), query = ";mail;{0}", param = c.Value);

Given Name

c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"]

=> issue(store = "Active Directory", types = ("urn:oid:2.5.4.42"), query = ";givenName;{0}", param = c.Value);

Display Name

c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"]

=> issue(store = "Active Directory", types = ("urn:oid:2.16.840.1.113730.3.1.241"), query = ";displayName;{0}", param = c.Value);

Member Of

c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"]

=> issue(store = "Active Directory", types = ("urn:oid:1.2.840.113556.1.2.102"), query = ";memberOf;{0}", param = c.Value);

Surname

c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname"]

=> issue(store = "Active Directory", types = ("urn:oid:2.5.4.4"), query = ";SN;{0}", param = c.Value);

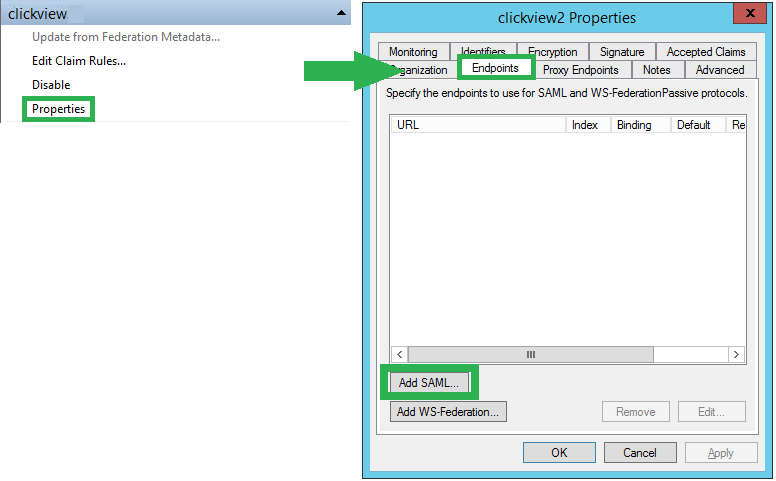

  1. Once the above attributes have been mapped please click on 'Properties' for the ClickView relying patry trust and select 'Endpoints':

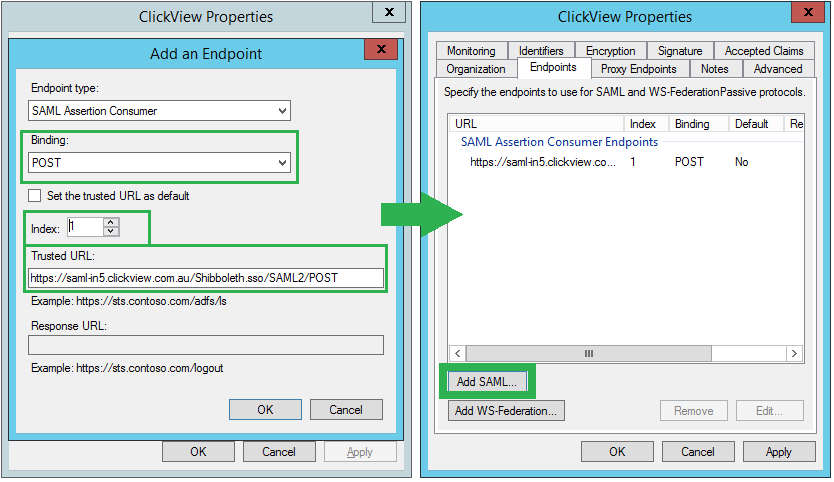

  2. Click on the 'Add SAML' button -> Click on 'Binding' drop-down menu to select 'POST' -> Click on 'Index' drop-down menu to select '1' -> Enter the POST URL of your region as per below:

    ClickView POST URLs

    AU: https://saml-in5.clickview.com.au/Shibboleth.sso/SAML2/POST

    UK: https://saml-in3.clickview.co.uk/Shibboleth.sso/SAML2/POST

    NZ: https://shibboleth.clickview.co.nz/Shibboleth.sso/SAML2/POST

    US: https://saml-in1.clickview.us/Shibboleth.sso/SAML2/POST

    (NOTE: Example below shows setup for Australian region)

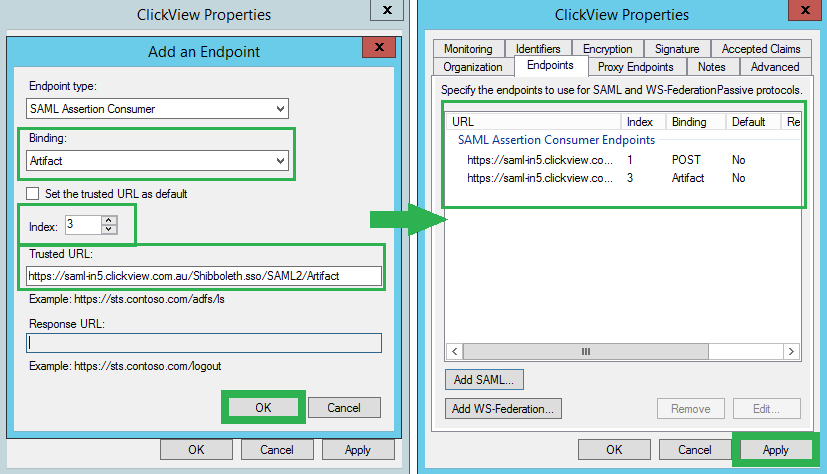

  3. Click on 'Add SAML...' button once again -> Click on 'Binding' drop-down menu to select 'Artifact' -> Click on 'Index' drop-down menu to select '3' -> Enter the Artifact URL of your region as per below:

    ClickView Artifact URLs

    AU: https://saml-in5.clickview.com.au/Shibboleth.sso/SAML2/Artifact

    UK: https://saml-in3.clickview.co.uk/Shibboleth.sso/SAML2/Artifact

    NZ: https://shibboleth.clickview.co.nz/Shibboleth.sso/SAML2/Artifact

    US: https://saml-in1.clickview.us/Shibboleth.sso/SAML2/Artifact

    (NOTE: Example below shows setup for Australian region)

Submitting your information

To start a new onboarding form, please click SSO Onboarding form,otherwise please continue with the form if you are already in the process of completing:


mceclip17.png mceclip18.png
